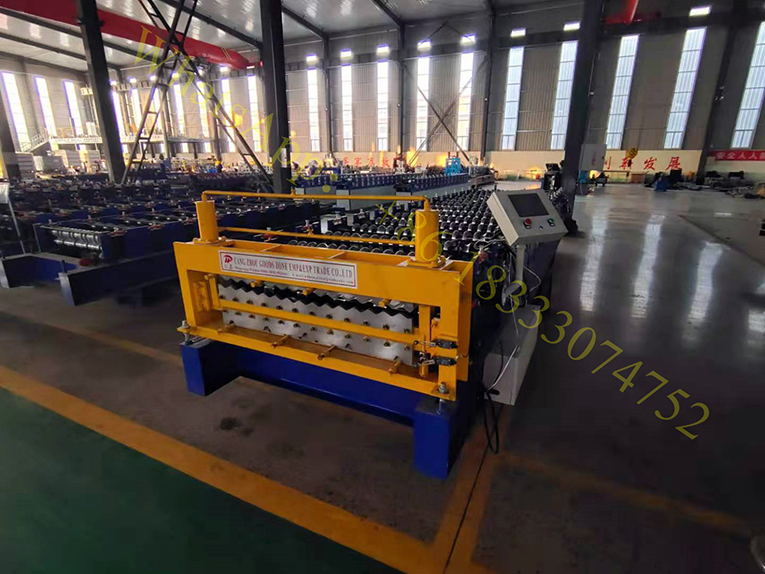

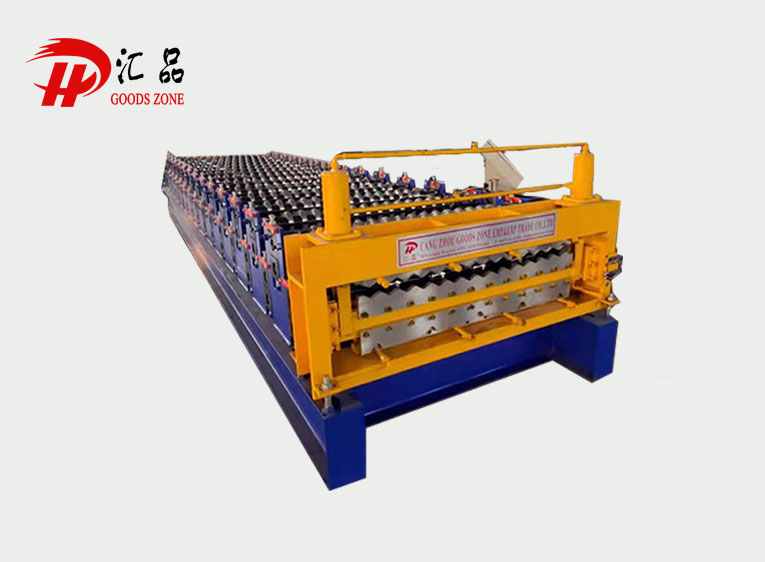

| Product Name:Rib Corrugate Two Layer Machine | |

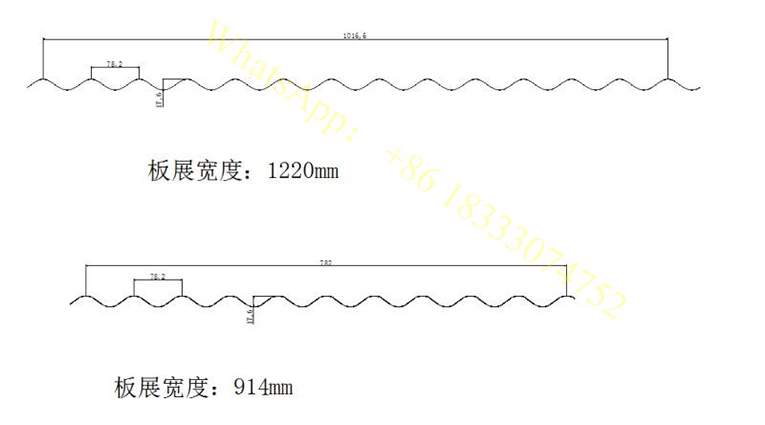

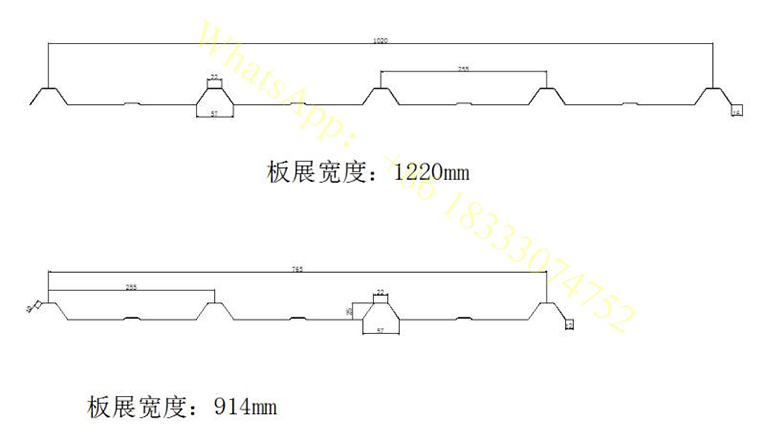

Two Layer Machine Advantage: 1) Two different model profiles can be made by one set of machine. 2), Save your cost. 3), Save your factory space. 4), This type of equipment is suitable for new entrepreneurs. Main Forming Part Details: 1), Raw material:Color Steel Sheet Coil/Glavanized Steel Coil 2), Feeding Width : 914mm-1250mm 3), Effective width : According to sheet profile drawing 4), Thickness : 0.3-0.7mm 5), Machine Weight : About 4.0Tons 6), Dimension of machine: About 8.0m*1.5m*1.4m 7), Shaft station : 13 Stations/ 15 Stations 8), Rolling speed : 0-16m/min 9), Transmission: By chain 10), Size of Chain : 1.0 inch 11), Material of Frame : 300 H steel welding 12), Thickness of middle plate : 16mm 13), Diameter of Shaft : 70 mm (Solid Shaft) 14), Shaft materials : 45# Steel plated hard 15), Material of Roller: 45# Steel plated hard 16), Power of main motor : 4KW 17), Cutter materials: GCr12 steel with quenched treated 60-62°C 18), Power of pump station: 4KW 19), Control system : PLC Control Box 20), Cutting way : Automatic Manual two control way 21), Cutting accuracy: ±2mm 22), Voltage: 380V/50HZ,3PH ( also can do based on your requirement) 23), Machine color : Do based on you need | Sheet Profile Drawing:
|
| Main Machine Parts With The Production Line Together | |

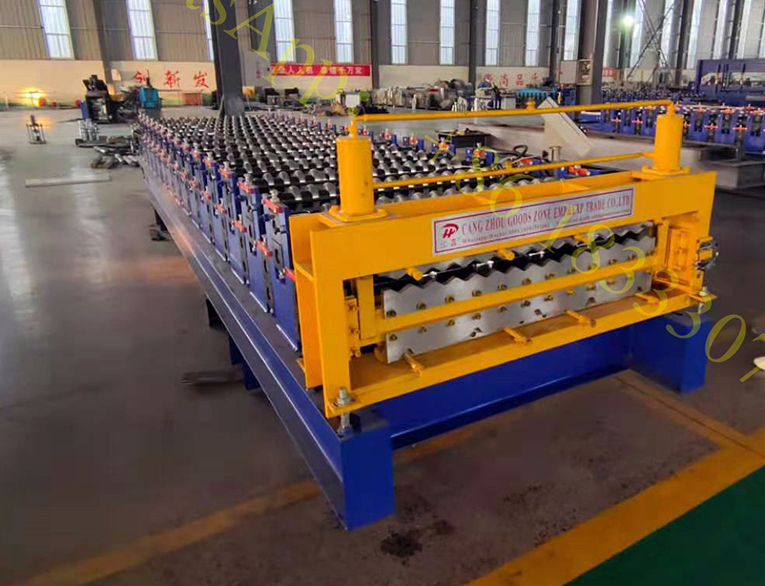

1), Hydraulic Cutter................................ 1 Set This new model Guide pillar shearing cutter make the machine looks more beautiful. It use hydraulic cutting. |  |

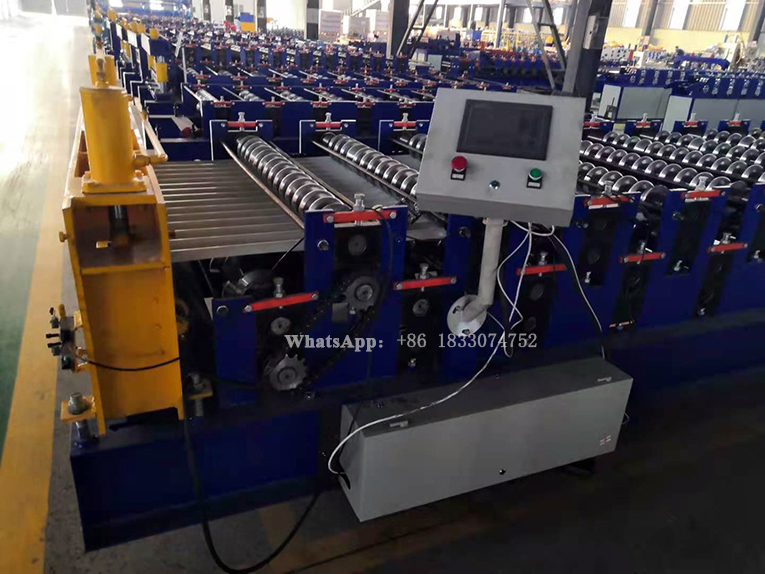

2), PLC Control device............................1 Set This model control panel is easy operating. |  |

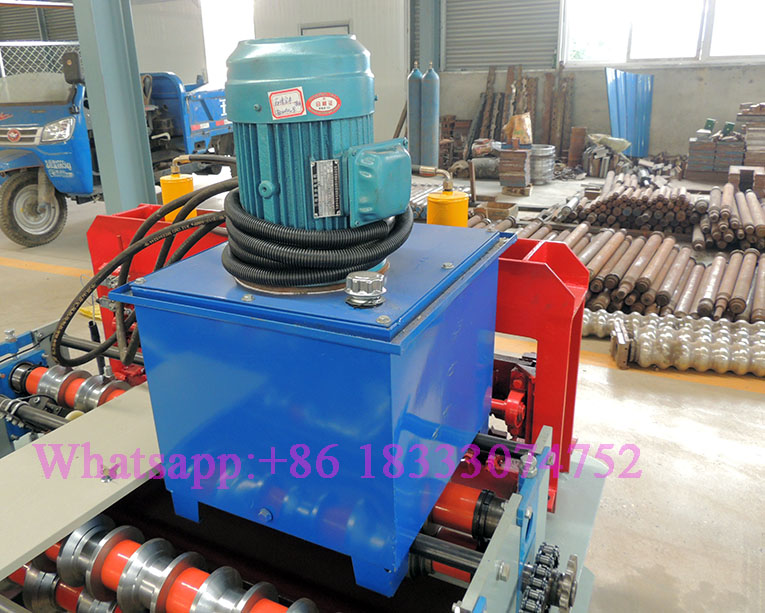

3), Pump Station......................................1 Set |  |
| 4), Motor.....................................................1Set | |

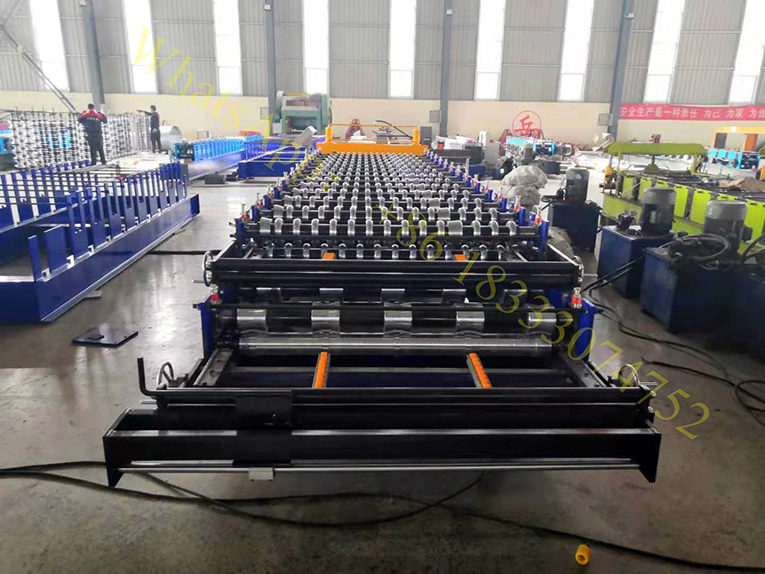

5), Feeding device....................................1 Set This model feeding device make the machine looks more beautiful.We add pre-cutter on the feeding device, after you finished working, you can cut down the sheet connecting easily. |
|
6), Manual Decoiler.................................1 Set The decoiler can bear 5 tons steel coil. |  |
More details about the Rib Corrugate Two Layer Machine, please contact us! | |
