Ribtype TR4 IBR Panel Machine

Box Profile Machine

Details

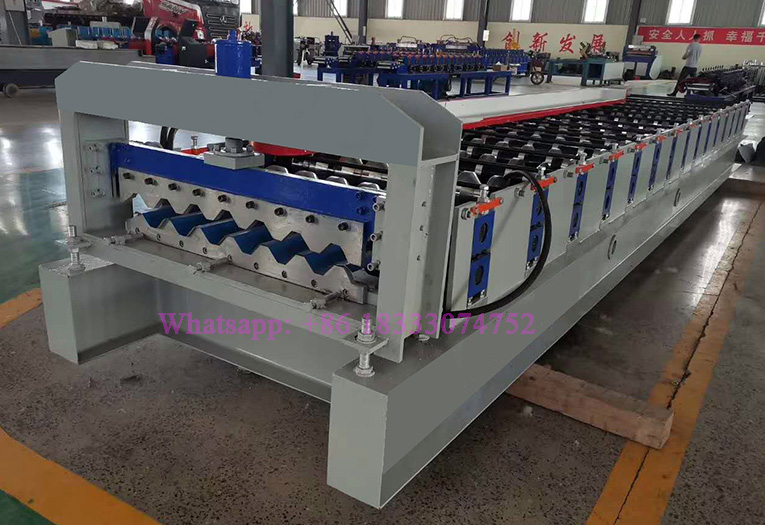

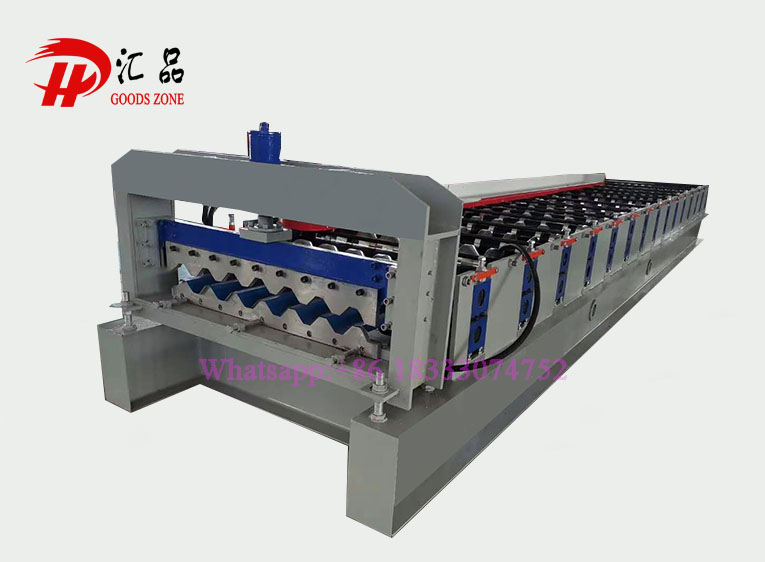

Product Name: 750 Model Box Profile Machine Roof Sheet Roll Forming Machine

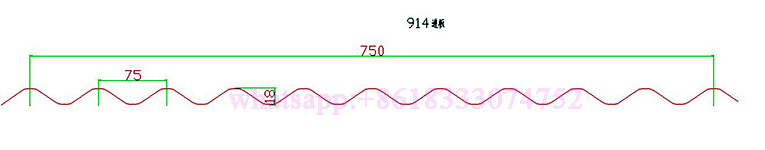

Main Forming Part Details: 1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil 2), Feeding Width : 914mm 3), Effective width : 750mm 4), Thickness : 0.3-0.7mm 5), Machine Weight : About 4.0Tons 6), Dimension of machine: About 8.0m1.5m1.4m 7), Shaft station : 16 Stations 8), Rolling speed : 0-16m/min 9), Transmission: By chain 10), Size of Chain : 1.0 inch 11), Material of Frame : 350 H steel welding 12), Thickness of middle plate : 16mm 13), Diameter of Shaft : 70 mm (Solid Shaft) 14), Shaft materials : 45# Steel plated hard 15), Material of Roller: 45# Steel plated hard 16), Power of main motor : 4KW 17), Cutter materials: GCr12 steel with quenched treated 60-62°C 18), Power of pump station: 4KW 19), Control system : PLC Control Box 20), Cutting way : Automatic Manual two control way 21), Cutting accuracy: ±2mm 22), Voltage: 380V/50HZ,3PH ( also can do based on your requirement) 23), Machine color : Do based on you need
Main Machine Parts With The Production Line Together
1), Hydraulic Cutter................................ 1 Set This new model Guide pillar shearing cutter make the machine looks more beautiful. It use hydraulic cutting.

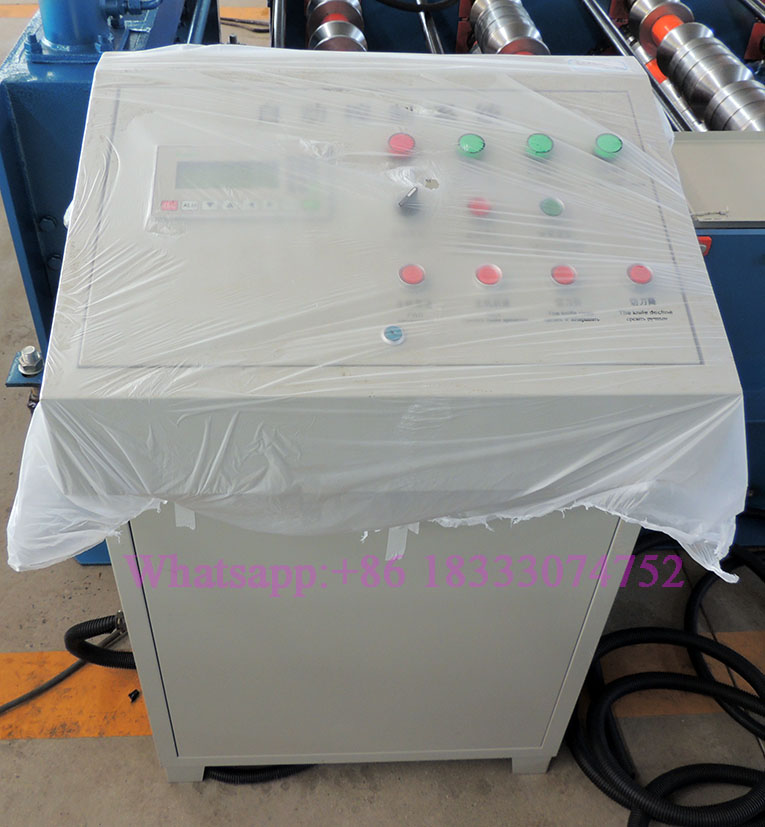

2), PLC Control device............................1 Set This model control panel save your space, and it uses touch screen, easy operating.
3), Pump Station......................................1 Set
4), Motor.....................................................1Set
5), Feeding device....................................1 Set
6), Manual Decoiler.................................1 Set The decoiler can bear 5 tons steel coil.
More details about the 750 Model Box Profile Machine, please contact us!
