Indonesia Eagle Rib Roof Machine

Details

  Indonesia Eagle Rib Roof Machine

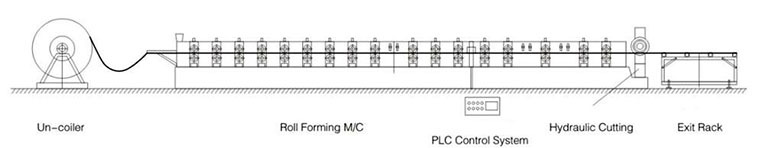

      1, Process Flow Diagram Of Indonesia Eagle Rib Roof Machine

        Eagle Rib Roof Machine.jpg

      2, What is the specification of trapezoidal roof roll forming machine?

        1), Length of the main part : about 8500*1650*1500mm

        2), Weight of main part : 6T

        3), Voltage : 380V/50HZ 3Phase ( can be optional)

        4), Roller fixer : middle plate

        5), Frame : 350H steel ( can be optional)

         6), Drive mode : chain

        7), Material of rollers : 45#steel, surface hard chromium plating.

        8), Material of shafts : 45#steel

        9), Diameter of shafts : φ 80mm ( can be optional)

        10), Number of rollers : 18 rollers ( can be optional)

        11), Main power : 5.5kw

        12), Material of mould : Cr12 quenched

        13), Power supply : hydraulic power

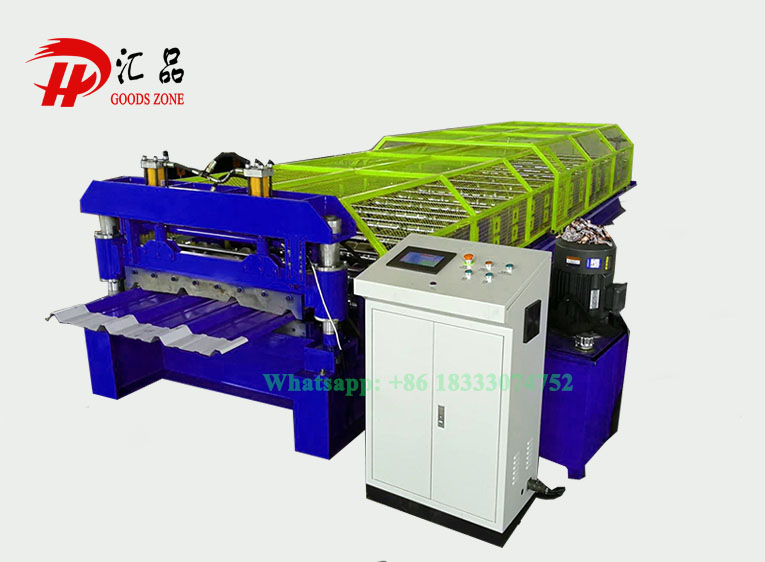

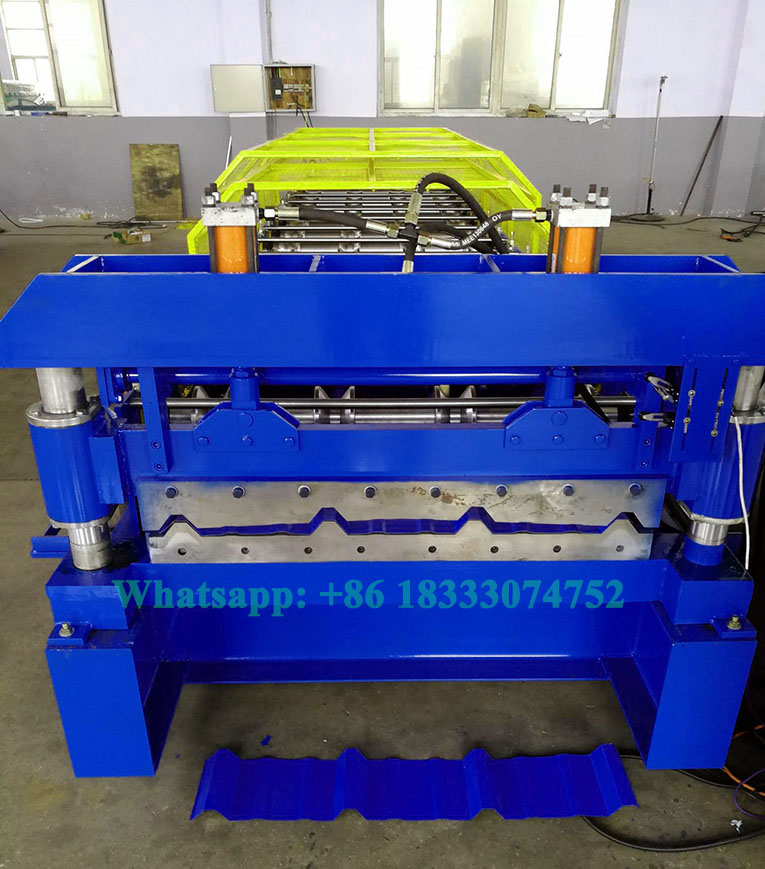

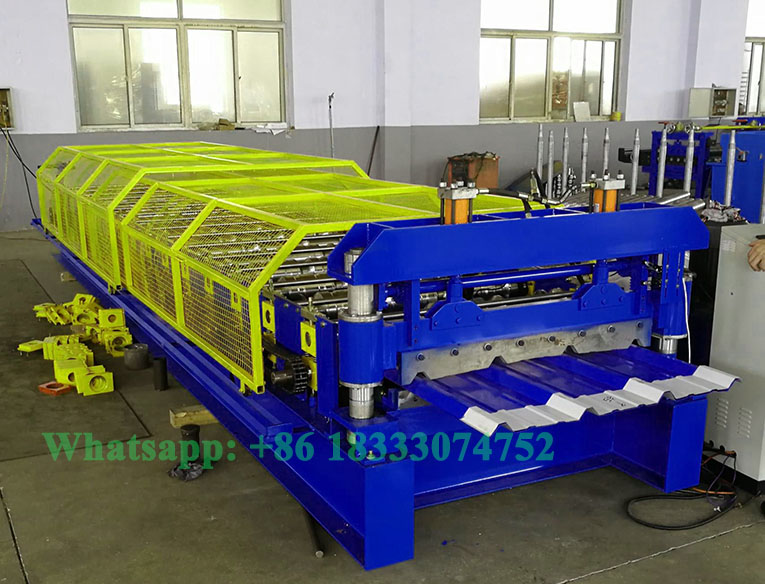

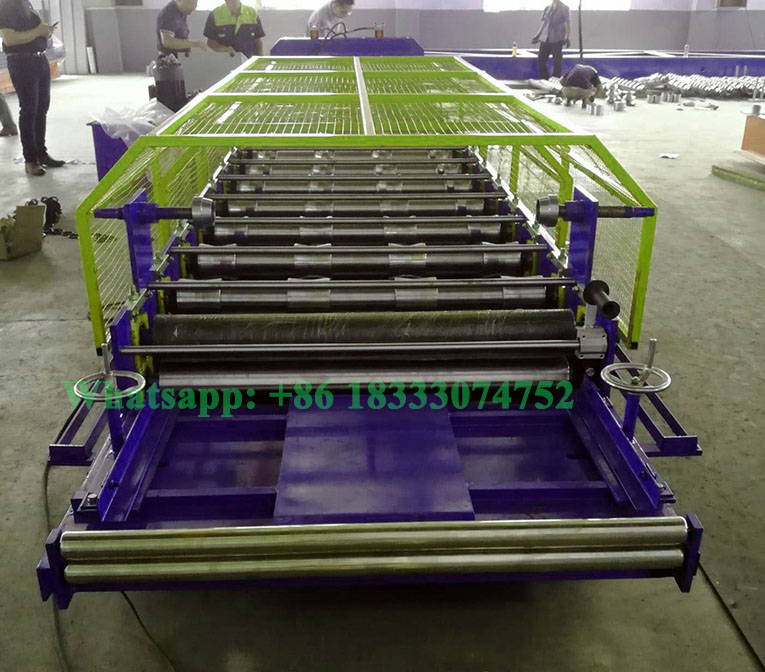

     3, Details Of Indonesia Eagle Rib Roof Machine

      Indonesia Eagle Roof Machine.jpg

       Indonesia Eagle Rib Machine.jpg

        Indonesia Eagle Rib Roof Forming Machine.jpg
